Introduction

From time to time, you may need to use a raster image to trace off information. For example, you may want to use a map base to draw the line of a road or to draw some contours. In the past, this would have been done using a digitising tablet and although AutoCAD still supports the use of tablets, the new image support options have, in many respects, made them redundant.

However, the only way to create an accurate drawing from a raster image is to accurately scale it. AutoCAD can help to scale some images if the file format contains information about the image resolution. This is more likely to be a special case rather than a general rule. The technique described below can be used to scale any raster image in such a way that units on the scanned map or plan correspond to AutoCAD drawing units. It works even if you do not know the image resolution. The only piece of information that you need is a known length that is easily identifiable on the plan. The length of a wall, the width of a road or the distance between grid lines can all be used to scale a raster image providing you can accurately pick each end of the measured length.

If you have little or no experience of working with images in AutoCAD and you would like to learn more, it is recommended that you work through the All About Images tutorial and then have a go at the corresponding Using Images exercise.

Image Image Attach Image Clip Image Adjust Image Quality Image Transparency Image Frame

If you have experience of working with images in AutoCAD but you need a reminder of some of the finer points, you can use the QuickFind toolbar (above) at any time to get information about a particular command.

Map Image

Step 1 - Sample Data

  • Download sample data

If you would like to follow this exercise step by step, you may like to download the map image, shown on the right. To download the file, right-click on the document icon below and select "Save Target As…" from the menu ("Save Link As…" in Netscape Navigator). Save the file in your working folder.

Download Map Image.jpg (177KB) Map Image.jpg (177KB) - JPEG File

The sample image is a 3km X 3km extract from an Ordnance Survey 1:50,000 scale map. The physical size of the image is 600 X 600 pixels. Using this information, you could easily work out the scale factor to display the raster map with drawing units set to metres. AutoCAD always inserts images in such a way that their width is one drawing unit in length when the scale is set to 1. We could, therefore, work out that in order to correctly scale this sample image in metres, all we need to do is set the scale factor to 3000, the width of the image being 3000 metres. However, this is a special case and you may not always know the true width of an image.

Top of page

Step 2 - Attaching the Image

  • Start a New Drawing
  • Create a New Layer
  • Attach Map Image.jpg

Start AutoCAD if you have not already done so and create a new drawing. Use the Layers command Layers to create an new layer called "Map Image" and set it to be current.

Next, start the Attach Image command from the Reference toolbar Image Attach. When the Select Image File dialogue box appears, navigate to your work folder and select the Map Image.jpg file.

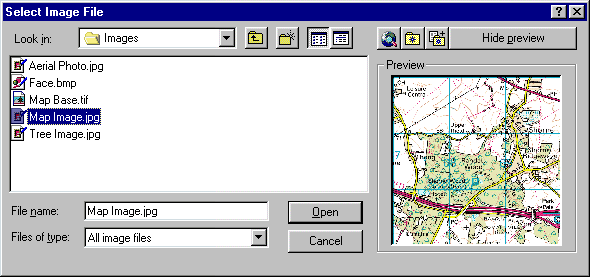

Select Image File Dialogue Box

The dialogue box should now look something like the one shown above. To complete the selection, click on the "Open" button. When the Image dialogue box appears, deselect all options. The dialogue box should look like the one illustrated below.

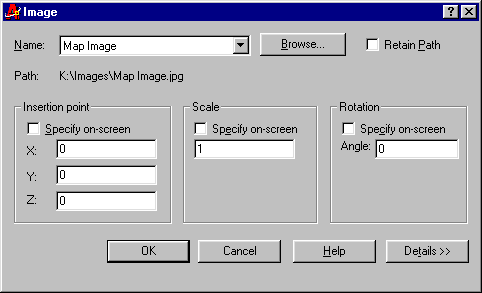

Image Dialogue Box

Click the "OK" button to proceed. Since all options were deselected, the image is automatically inserted with default settings. The lower-left corner of the image is at the drawing origin (0,0) and the image width is one drawing unit.

Use the Zoom Extents command, ViewZoomExtents from the pull-down menu or Zoom Extents from the toolbar, so that the map image fills the drawing window.

Top of page

Step 3 - Scaling the Image

  • Scale the image using the Reference option

By default, the Scale command requires the user to enter a scale factor in order to accurately scale an object. For example, if you wanted to double the size of an object, you would enter a scale factor of 2. The scaling of raster images is rarely this straightforward. In order to determine the scale factor for any given image, you would need to know the current distance between two known points on the image (expressed in drawing units) and the actual distance between the same two points in the real world (expressed in your chosen unit, usually metres or millimetres). Given this information, the scale factor can be calculated by dividing the actual distance by the image distance. For example, we know that the width of the Map Image is one drawing unit (because the insert scale was set to 1). We also know that the actual width of the Map Image is 3km or 3000 metres. So, to scale the image correctly in metres, the scale factor would be 3000/1 = 3000.

This method works perfectly well for most situations. You could use the Distance command, Distance from the toolbar or ToolsInquiryDistance from the pull-down menu to measure an image distance and then divide this into the known or "real world" distance to come up with a scale factor. However, there is an easier way that avoids the necessity for measurement.

Grid Intersections The Scale command has an option that can be used to scale an object simply by reference to two pick points and a known true distance. It works in a similar way to the method described above except that AutoCAD automatically measures the distance and calculates the scale factor for you. For this exercise, we will use the two upper grid intersections as the pick points and the true distance between them (1000 metres).

Follow the sequence below to correctly scale the Map Image in metres.

Start the Scale command, ModifyScale from the pull-down or Scale from the Modify toolbar.

Command: SCALE
Select objects: (pick the Map Image frame to select it)
Select objects: Return
Specify base point: (pick any point or enter 0,0 if you want the lower left corner of the image to remain at the drawing origin)
Specify scale factor or [Reference]: R
Specify reference length <1>: (zoom in Zoom Window and pick the point where the grid lines cross)
Specify second point: (zoom out Zoom Previous and then zoom in Zoom Window on the second grid intersection and pick the point)
Specify new length: 1000

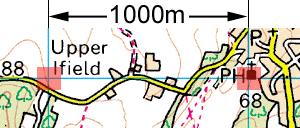

Pick Left Pick Right
Zoom in and pick first point Zoom in and pick second point

Obviously you cannot use the Object Snaps to accurately pick points on a raster image. The only way to achieve a reasonable accuracy is to zoom in as far as possible and pick as precisely as you can. As you can see from the illustrations above, this is not always easy, the closer you get to a raster image line, the wider it becomes. This is not ideal but you should be able to achieve accuracy to within a fraction of one percent which is acceptable for most purposes.

Finally, zoom extents Zoom Extents to display the full image. The Map Image is now correctly scaled in metres. You can always check this by using the Distance command Distance to pick the same two points. You should see that the distance is 1000 drawing units (or thereabouts, depending upon the accuracy of your pick). You can now "trace" over the raster image using all of the usual AutoCAD commands such as Line and Polyline. Any vector drawing objects thus created will be correctly scaled in metres.
