Michael’s Corner #140
June/July 2015

Once Upon a Time

by Michael Beall

Maybe it's because I'm just older (old!?), but I sure do miss the dynamite on the Explode button. Oh, wait here it is now! Really?

While Autodesk keeps putting new stuff in, I just want to make sure you know how to use the old stuff as efficiently as possible before moving on. To that end, I have a rather eclectic collection of customization bits that can be applied to all currently supported versions of AutoCAD. (How was that for being vaguely specific on where this tricks will work!?)

…Tweaking the Double Click Action to launch the earlier Edit Attributes dialog box.
…Putting the dynamite .BMP back on the Explode button.
…Viewing the Properties of the current Workspace.
…Modifying the plot scale list displayed when choosing a plot scale for a viewport.

When it's all said & done, however, it's all about economy of movement, productivity… and going home a wee bit sooner.

Hope you enjoy these!

If you would like to contact me directly, you can do that also.

Blessings to one and all,
Michael

Set ATTEDIT as the Double-Click

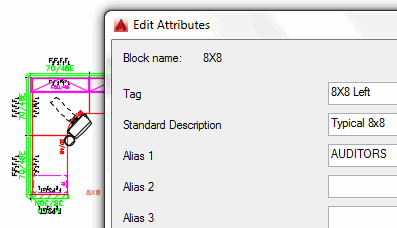

My customers work with attributed blocks all day long, and the Enhanced Attribute Editor—while providing more options for the editing of the selected block—doesn't allow for the use of the Tab key. Time for a refit of the double-click.

How To Change the Double-Click Edit for Attributes

1. Open the CUI.

2. Under Customizations in All Files, scroll to the bottom and expand Partial Customization Files, then expand CUSTOM.

3. Right-click on Double Click Action, then click New Double Click Action.

4. Enter Attribute Edit as the name of the new double click action.

   Since the command we're looking for—ATTEDIT—is nowhere to be found in the list of commands in the CUI, we'll Duplicate the one that is there—EATTEDIT—and modify the Macro.

5. Under the Command list, locate Edit Attribute, right-click on it, then click Duplicate.

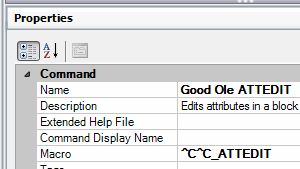

6. Under Properties, change the Name to Good Ole ATTEDIT, (which is the Tool Tip), then change the macro to read:

   ^C^C_ATTEDIT



   Since this is a double-click action feature, it isn't necessary to make any changes to the image, although you may if you want.

7. Now drag your new command from the Command List, and release it next to your new double click action, Attribute Edit.

   These last steps tie it all together…

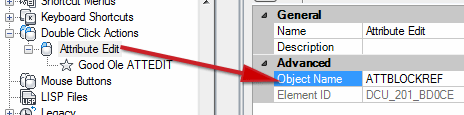

8. Under the Double Click Action node, click on Attribute Edit to display the properties for that action.

9. For the Object name, enter ATTBLOCKREF.



10. Click OK to close the CUI and Save your changes, then check out your new Double Click Action!

Top of page

Power Tool

Original Explode Button

I covered this five years ago, but I thought it warranted repeating, especially with the recent arrival of AutoCAD 2016.

The bottom line to putting your own personal icons on buttons, is where the image files are stored by default, specifically:

C:\Users\YourLogin\AppData\Roaming\Autodesk\AutoCAD 201x\Rxxx\enu\Support\Icons

Click here to go to the downloads on my website where, at the bottom of the list of productivity tools on the right, you will see CADTutor Files, under which you will see a couple icons for your enjoyment. Right-click on and save the one you would like, then follow the steps below.

How to Replace an Icon on the Ribbon

1. Open the CUI.

2. Under the Command list, navigate to, then click on the Explode command to display the Button Image information.

   Note: If you want to preserve the Box-Coming-Apart icon image, click Export, then give it a name and save it.

3. To import the Original_Explode.BMP file, click Edit to open the Button Editor.

4. Click Import. If you saved the .BMP to the proper folder (mentioned above), it should be right there for you to select and Open.

5. Click Save and enter a name for the image. This one will be saved to the official, bet-you-can't-find-it, file containing all the button images. Click Close to close the Button Editor.

6. Click OK to close and your changes, and check out your new Explode button top!

Top of page

The Odd Spot

Properties of the Workspace in the CUI

As is the case throughout this endless maze of zeroes and ones, when you're in the CUI and click on the name of a Workspace, the Properties panel provides an editable collection of General and Display components for the selected workspace.

Top of page

The Basics

Shorten the Plot Scales List in a Viewport

If you plot from a viewport on a Layout tab, and you have a specific collection of plot scales you typically use, you may be interested in editing that list to display only the ones you need to see.

There are other approaches to accessing the same plot scale regularly, but this is one of the most straightforward.

How to Modify the List of Plot Scales

1. When you're in a viewport, click the location on the Status bar where you see the scale/factor for the current viewport.

2. Scroll to the bottom, then click Custom… to open the Edit Drawing Scales dialog box.

3. I would recommend keeping 1:1, but then select those plot scales you really don't need, then click Delete.

4. Organize the ones you use all the time by using Move Up or Move Down.



Note: If you totally gom it up, you can always hit Reset, then choose your desired collection of either Imperial, Metric, or both.
