Michael’s Corner #48
December 2006

2D and 3D Presents for the Holidays

by Michael Beall

I hope you all are looking forward to the upcoming holiday season, no matter what hemisphere you're wandering around in at this time. In an effort to brighten your AutoCAD day, I wanted to bring you another 3D treat from A2007. The Presspull command is pretty simple and has quite a bit of potential. Some of that potential can be reviewed in the Help screen… which just happens to be the coverage in the Basics section this time.

As for this month's Power Tool, regardless of your take on that annoying DYN button, it does have some pretty useful stuff incorporated into it, especially when you are querying information about existing objects. And for all of us who have been diehard fans of the Express Tools Layer Manager, heads-up. Take a look at the Odd Spot and make plans to redirect your layer state efforts toward the Layer States Manager.

By the time you read this, Autodesk University 2006 will be in the archives and Las Vegas will… still be Las Vegas. There are, however, numerous sources from which you can acquire significant AU content. First, take a look at www.autodesk.com/au to see what's available for browsing or download. You may also want to take a look at the AU blog of my friend Shaan Hurley, http://autodesk.blogs.com/between_the_lines/.

Have a blessed and safe holiday season, one and all!

If you would like to contact me directly, you can do that also.

Blessings to one and all,
Michael

Another A2007 3D Feature: PRESSPULL

This one is so-o-o easy and so-o-o cool! The Presspull command creates a 3D solid and, when once you've worked with it, you'll see it is simply the logical, graphic progeny of the Extrude command.

Insights

• Any closed area is fair game. If it doesn't have a gap and the geometry is all coplanar, it's good to go.
• It's more fun if you adjust your view so you're not looking down on the shape when you "pull" it up.
• Contrary to an Extrude result, the 3D Solids generated from Presspull are independent of the original shapes from which they were created AND the new solids reside on the current layer.

Instruction to use PRESSPULL

1. To easily position your view, go to View3D Views, then choose one of the Isometric views at the bottom of that list.
2. Open the Dashboard (ToolsPalettesDashboard).
3. In the 3D Make Control Panel area (the top one, by default), click Presspull.

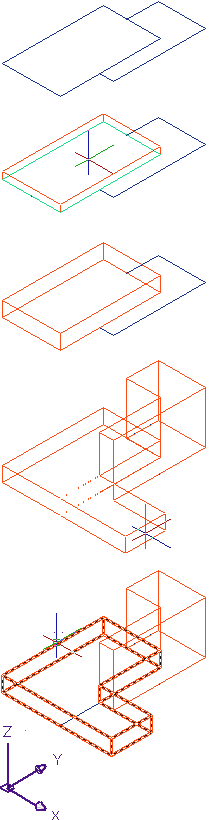

4. Place your cursor anywhere inside a closed area and the area will automatically highlight.
5. Click in the area to initialize the command, then move your cursor away from the shape (in either direction), then enter the desired distance for the "pull". Job done!

More Insights

• After you have generated some 3D solids, run Presspull again and hover over a surface that is not parallel to the current XY plane.
• On some solids generated using Presspull, click on the solid to display the grips and you will notice a triangular grip that enables you to edit the height of the solid!
• For those of you who have worked with Solids for any length of time, you will notice that Presspull is the perfect method of changing your primitive shapes!

Top of page

Power Tool

That DYN Button

I will say here and now (again, I'm sure) that I'm not a fan of the DYN button that was introduced in A2006. However, while training my Level I students at University of Louisville a couple months ago, I made some interesting discoveries… and it's not often that I make discoveries in a Level I class, but when I do, I'll admit to 'em.

Insights if DYN is on:

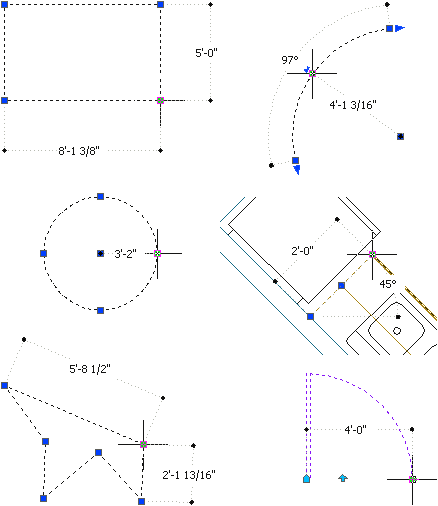

• Click on any object type… Rectangle, Circle, Line, or Arc …then hover in one of the grips to see the size of that object.
• Click on a dynamic block with graduated Stretch or Scale parameters, then hover in the grip to see the size of the block.

Top of page

The Odd Spot

Save your Layer States

Quick History Lesson. The Express Tools have, as many of you know, had an interesting history. In the Express Layers collection, there was a wonderful feature called Layer Manager in which you could name layer states… including, to its credit, layer states within viewports.

Beginning in AutoCAD 2006, named layer states created using ExpressLayersLayer Manager could ALSO be opened in the Layer Properties ManagerLayer States Manager.

Here & Now. Yes, in AutoCAD 2007 you can type LMAN and get the Express Layer Manager dialog box. However, the Layer States Manager (accessed from the Layer Properties Manager) does NOT list the named layer states created using LMAN.

Could this be a subtle "hint" on the part of Autodesk that LMAN is being phased out? We'll know soon enough but my hunch is "probably". So, starting now, I'd be saving layer states using the Layer States Manager.

Top of page

The Basics

The HELP Feature: Use It!

I have used AutoCAD's Help feature dozens of times, I'm sure. While writing this month's column, I went over to the Help screen to see if there were any variables that related to the Presspull command.

When authoring one of the Training Courseware books for Autodesk, I consulted Help extensively to learn about the (then) new Sheet Set feature… and that was before the software was on the streets!

Needless to say, Help is where it's at.

Insights When Using HELP

• Start on the Search tab and just type in the variable or command you want to learn more about.
• Even though the Commands tab may be open, click on the Commands tab again to close it and you may see more links or content. This tab contains the "dictionary" explanation of the command and includes the command options.
• The Procedures tab will have at least one fundamental exercise, and for complex commands you will find a collection of Frequently Asked Questions and How-To content links.
• On the Concepts tab you will find, essentially, the encyclopedia version of the explanation of the command. For the Presspull command, there is an animation illustrating an application for creating a window in a 3D wall using Presspull.

Top of page
